Double Polishing Workstation
Double Polishing Workstation
Double Polishing Workstation
Product Code
TP-480
TP-480
Station Type
Dual Station
Filtration System
Integrated
Compliance
CE Certified
Release
2025
Product Code
TP-480
Station Type
Dual Station
Filtration System
Integrated
Compliance
CE Certified
Release
2025
Double Polishing Workstation
Double Polishing Workstation
Double polishing, lapping, and satin-finishing workstation with integrated filtration system, designed for an optimal working position. Its ergonomic design allows seamless integration of the manual finishing machine.
Double polishing, lapping, and satin-finishing workstation with integrated filtration system, designed for an optimal working position. Its ergonomic design allows seamless integration of the manual finishing machine.
Double polishing, lapping, and satin-finishing workstation with integrated filtration system, designed for an optimal working position. Its ergonomic design allows seamless integration of the manual finishing machine.
Technical Specifications
Technical Specifications
Technical Specifications
TP-480
TP-480
TP-480
Double Polishing Workstation
Double Polishing Workstation
Double Polishing Workstation

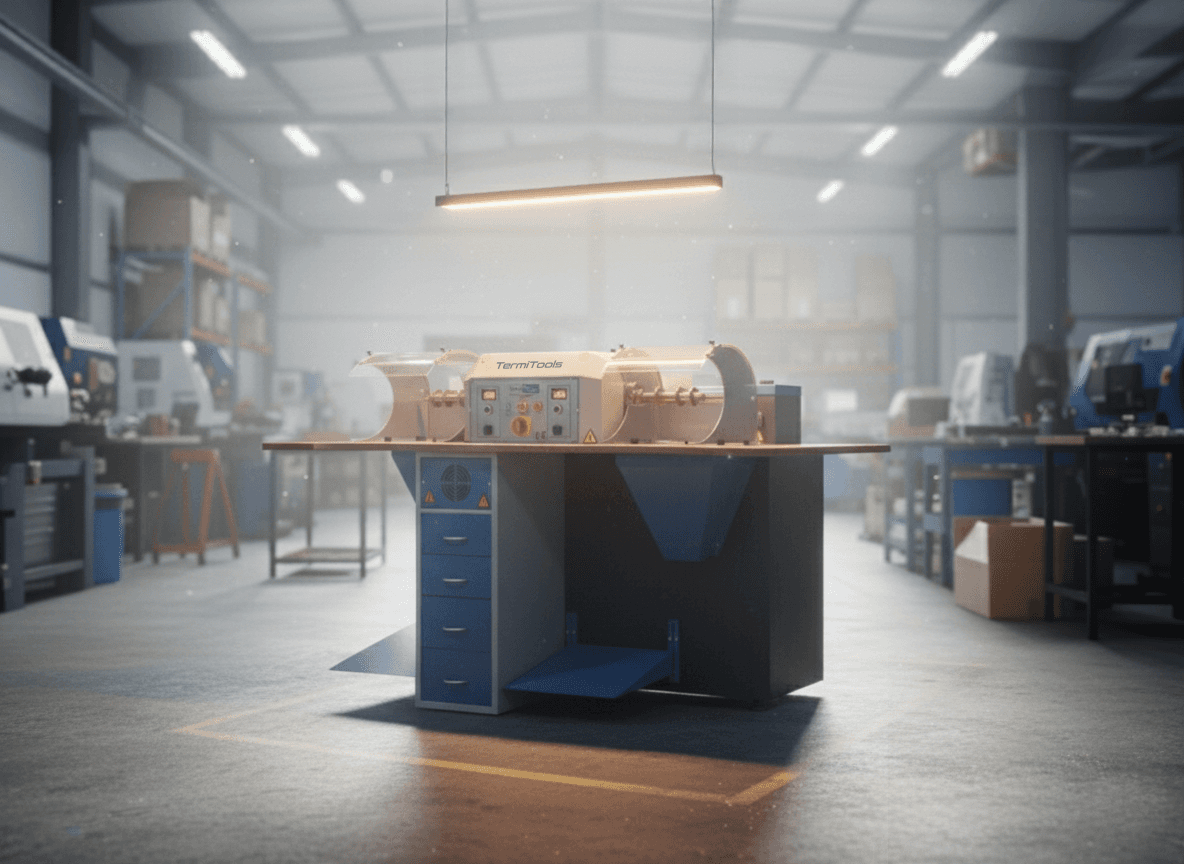

The TP-480 is a high-capacity polishing and finishing bench designed for demanding operations such as polishing, lapping, satin finishing, deburring, and sanding. With its integrated filtration system, it provides a clean and safe working environment while optimizing operator comfort.
Offering LED lighting, dual 220V sockets, and rapid access to advanced dust filters, the TP-480 is built to maximize performance. Its adjustable suction system efficiently captures residues and ensures recovery of precious metals, making it the ideal choice for professional jewelers and watchmaking workshops.
The TP-480 is a high-capacity polishing and finishing bench designed for demanding operations such as polishing, lapping, satin finishing, deburring, and sanding. With its integrated filtration system, it provides a clean and safe working environment while optimizing operator comfort.
Offering LED lighting, dual 220V sockets, and rapid access to advanced dust filters, the TP-480 is built to maximize performance. Its adjustable suction system efficiently captures residues and ensures recovery of precious metals, making it the ideal choice for professional jewelers and watchmaking workshops.
The TP-480 is a high-capacity polishing and finishing bench designed for demanding operations such as polishing, lapping, satin finishing, deburring, and sanding. With its integrated filtration system, it provides a clean and safe working environment while optimizing operator comfort.
Offering LED lighting, dual 220V sockets, and rapid access to advanced dust filters, the TP-480 is built to maximize performance. Its adjustable suction system efficiently captures residues and ensures recovery of precious metals, making it the ideal choice for professional jewelers and watchmaking workshops.
Vacuum Motor
Vacuum Motor
4 Hp 3 kW 2850 rpm
4 Hp 3 kW 2850 rpm
Airflow Capacity
Airflow Capacity
5500 Q = m³/h
5500 Q = m³/h
Colors
Colors
RAL 9010 / 5002 / 9005
RAL 9010 / 5002 / 9005
Weight (Including Machine)
Weight (Including Machine)
300 kg
300 kg
Installed Power
Installed Power
2.2 kW (0 – 4500 rpm)
2.2 kW (0 – 4500 rpm)
Power Supply
Power Supply
380 V
380 V
Maximum Brush Diameter
Maximum Brush Diameter
270 mm
270 mm
Dimensions
Dimensions
105 x 220 x 130 cm
105 x 220 x 130 cm
